Hardware equipment

Double-sided tape sealing and printing and sticking machine

Application scenarios

With pneumatic and air-blown labeling modes, meeting the instant printing and labeling requirements of different customer sites or different items; 50 sets of parameter storage, saving the need to set the material model one by one, allowing opening of the whole pairs of parameters.

Scope of application

The machine can be used to print ordinary barcodes, text, variable data, 2D barcodes and RFID labels.

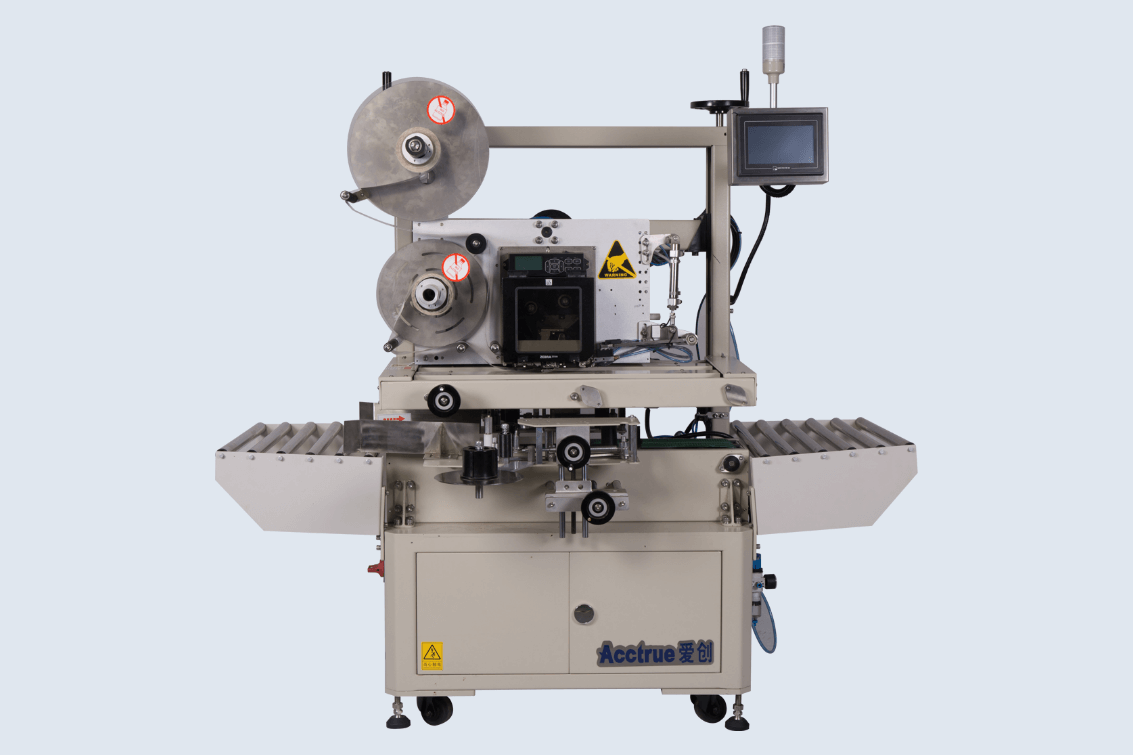

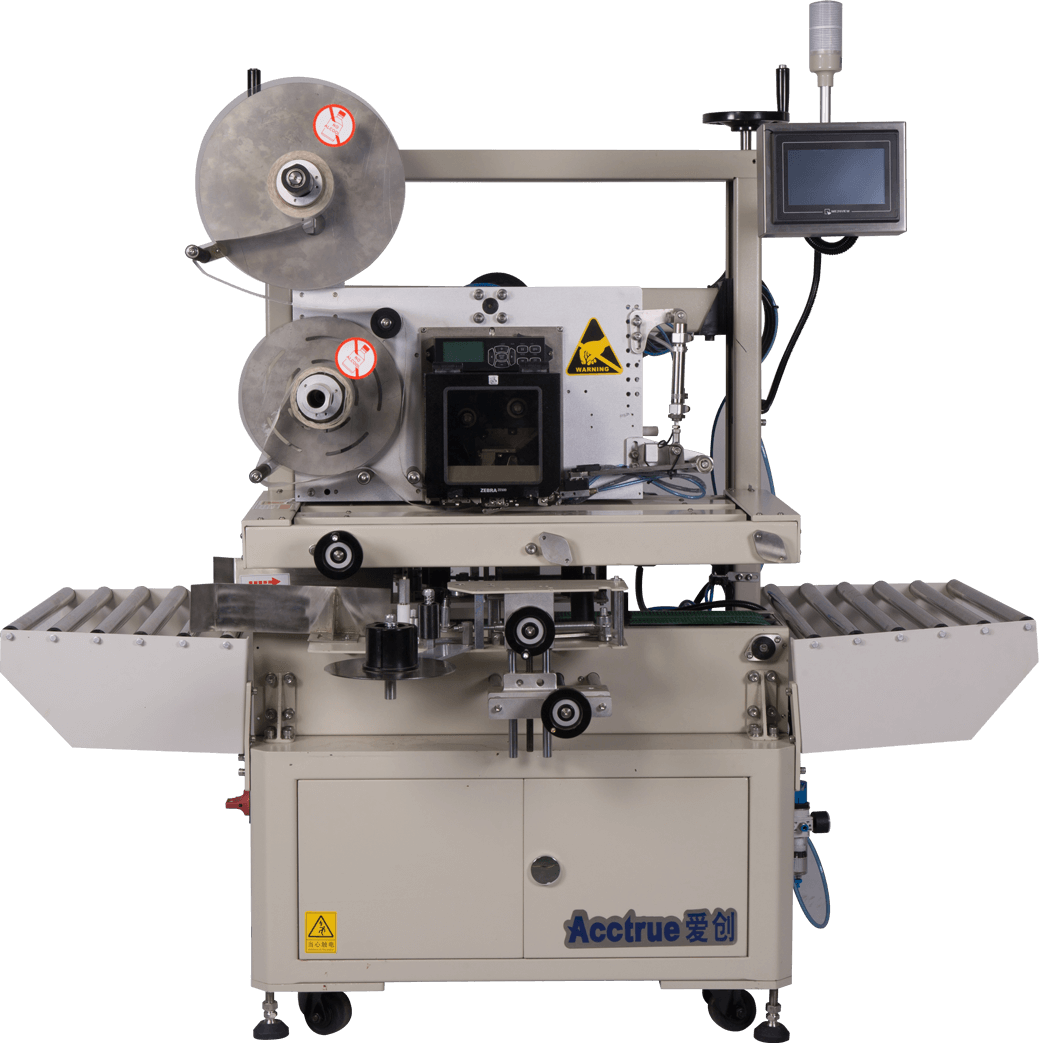

Product overview

The double-sided tape sealing and Instaprint labeling machine integrates equipment such as a box sealing machine, an Instaprint labeling machine, etc., and it can also be fitted with ink-jet printer and other equipment to complete various commands and actions in one process. The machine uses pressure-sensitive tape to seal the box so that it can complete the left and right sealing actions at one time, print the traceability code of the labeling product, allow adjustment of the labeling position, which is economical and fast. It is the best choice for automation sealing and labeling process of enterprises, as well as automated packaging.

Advantages

Easy wire connection

Equipped with Ethernet port/serial port/parallel port data transmission mode, making it possible to achieve real-time management and system integration.

High precision

Automatic deviation correction function of the label suction plate, allowing effective correction of the labeling accuracy error and smooth and artistic labeling effect.

Stable operation

Zebra ZE500 printing engine for the labeling machine, delivering stable and clear printing effect.

Small floor area

Integrated box sealing and labeling, small and artistic appearance, saving more space for customers.

Simple operation

Human-machine interface, with adjustable parameters, intuitive interface, complete functions, simple operation.

Technical parameters

Air source

0.4~0.6MPa

Power

220V 50HZ 180W

Workbench height

550-750mm

Tape used

Kraft paper tape, BOPP tape

Width of sealing tape

36mm、48mm、60mm

Sealing speed

20 m/min

Minimum sealing size

180*120mm (width*height)

Maximum sealing size

700*500mm (width*height)

Printable label width

110mm

Instprint labeling speed

35 pieces/min
