Hardware equipment

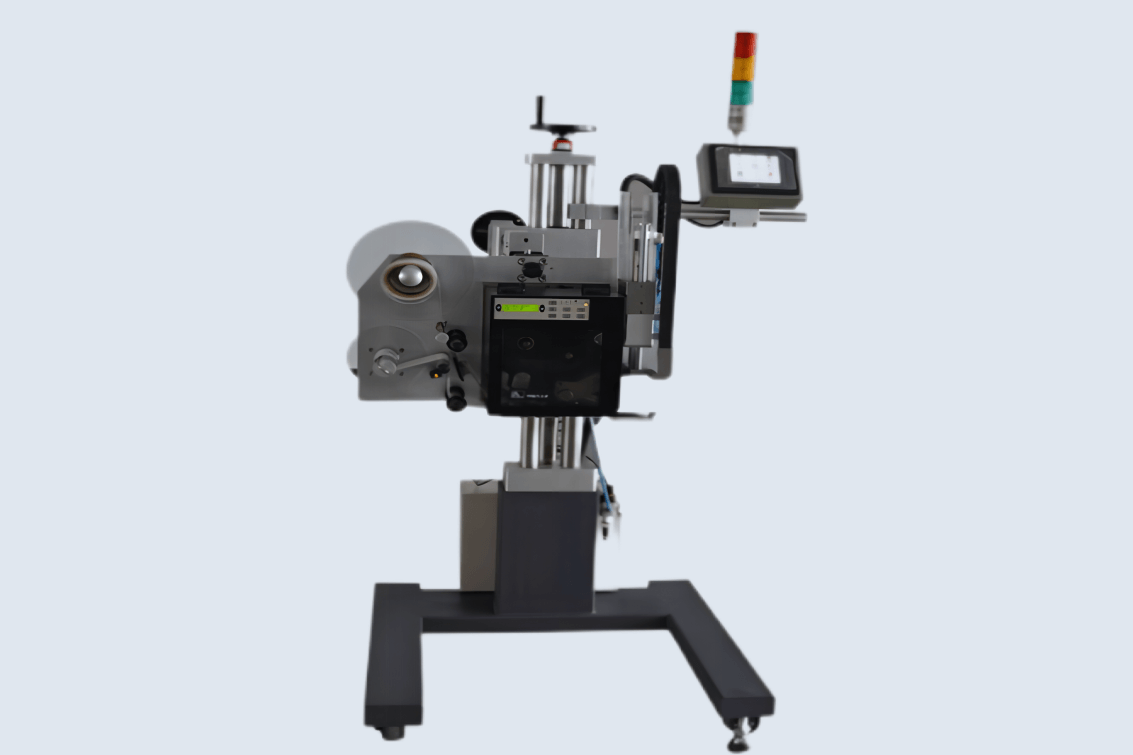

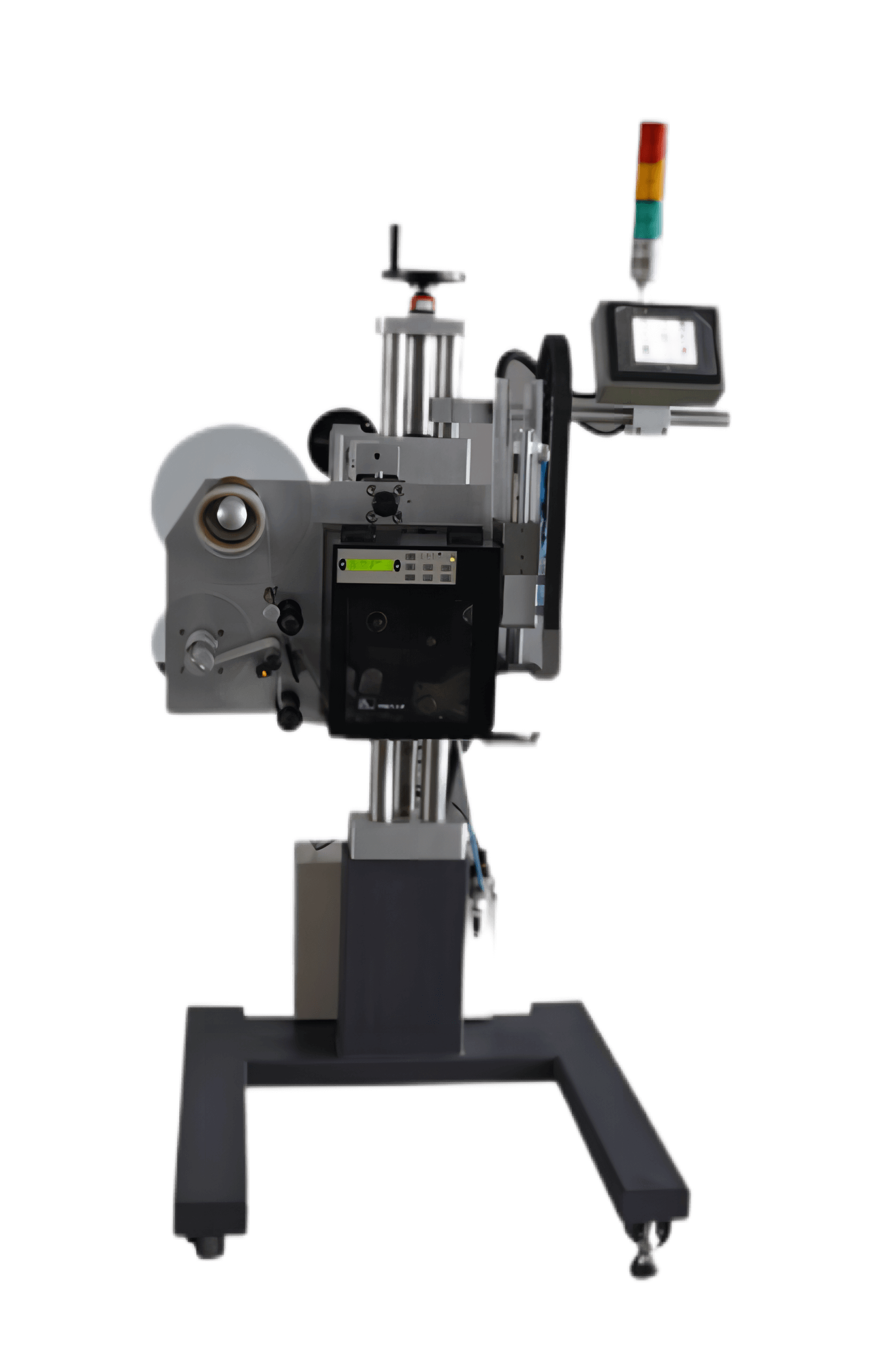

Instaprint automatic labeling machine

Scope of application

Print text, variable data, ordinary barcodes, 2D barcodes and RFID labels, etc.

Product overview

A301 Instaprint automatic labeling machine is configured with touch human-machine interface, shortcut menu setting, delivering clear display and convenient use. This model has rich functions, which is simple and flexible in operation. It is designed with functions such as counter, real-time printing and labeling, leak-proof labeling, automatic labeling, alarm, remote control, etc., and also supports various auxiliary functions such as message board and online help. It is widely used in various industries with anti-counterfeiting and anti-channeling requirement.

Advantages

Remote control and management

Remote control and management, saving site configuration of control compute.

Instant, accurate and accurate

Simple layout of the production site, to facilitate instant printing and product labeling in the production line. High labeling accuracy, unique structure device, delivering effective reduction of labeling accuracy error.

Multi-level coding association

Connection with the system database to achieve real-time data management and system integration.

A variety of labeling methods

Pneumatic, air blowing, right angle labeling and side angle labeling, etc.

Multiple print engines

Original Zebra ZE500 series print engines available.

Technical parameters

Label specification requirements

Use "Glassine" backing paper, the thickness of the face paper > 50 microns, the outer diameter of label roll < 200 mm, and the inner diameter: 76 mm

Label size (labeling)

Standard: (W)110*(L)110mm

Maximum printable area

ZE500-4 series (W) 104 * (L) 990mm/ZE500-6 series (W) 168 * (L) 990mm

Printing speed

305mm/sec.(203dpi) / 203mm/sec.(300dpi)

Resolution

203dpi, 300dpi for option

Power supply and total power

220VAC±10% 46-62Hz 450W

External dimensions

(L)1264*(W)885*(H)1900

Working air pressure

0.5-0.7Mpa、300L/min.

Labeling direction

Top, side and corner labeling mm

Labeling accuracy

+2mm (excluding packages and label error)

Labeling speed

Up to 60 labels/minute (depending on the object to be attached, the size of label, and the printed content))

Printing engine

Zebra PAX
